ActiveHeight™ and ActiveReach™ for Permobil Power Chairs

HomeCatalogWheelchairs & SeatingActiveHeight™ and ActiveReach™ for Permobil Power Chairs

From Permobil

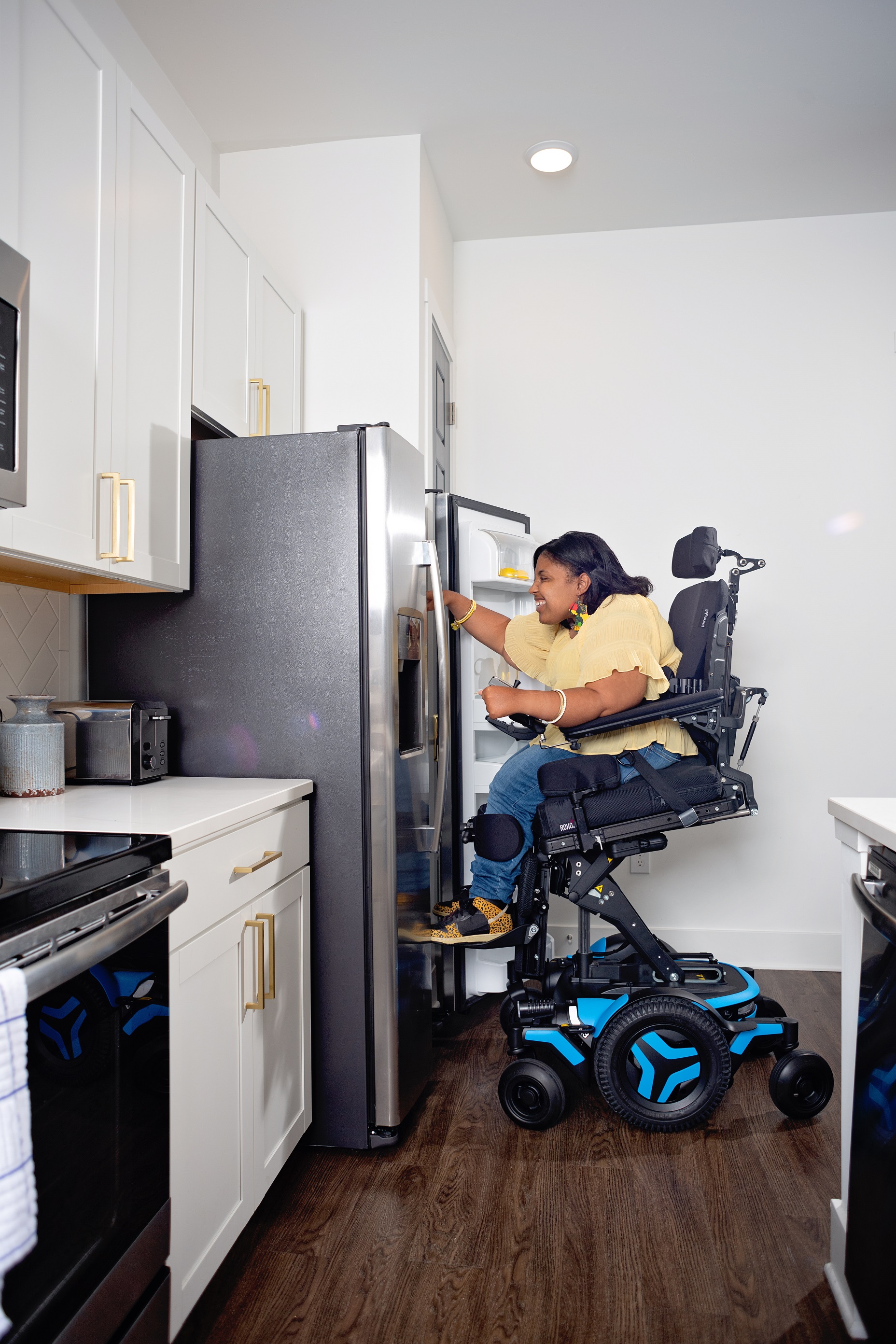

A Black woman in an M3 power wheelchair is elevated and tilted forward 20 degrees, using the ActiveReach feature to access the top shelf of her stainless steel fridge.

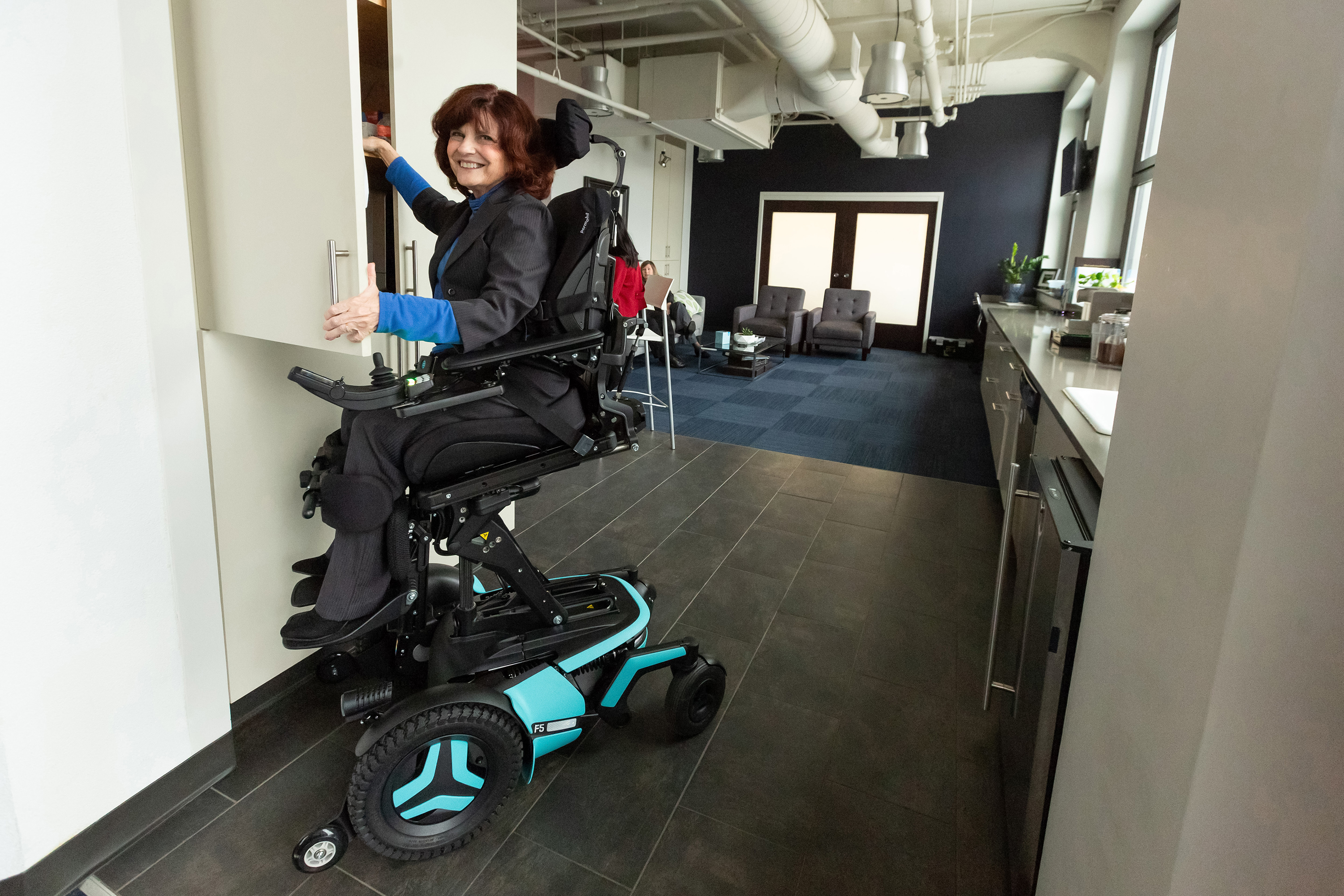

A Caucasian woman smiles and faces the camera. She is using her F5 power chair with light blue accents in ActiveReach position to access her upper cabinets.

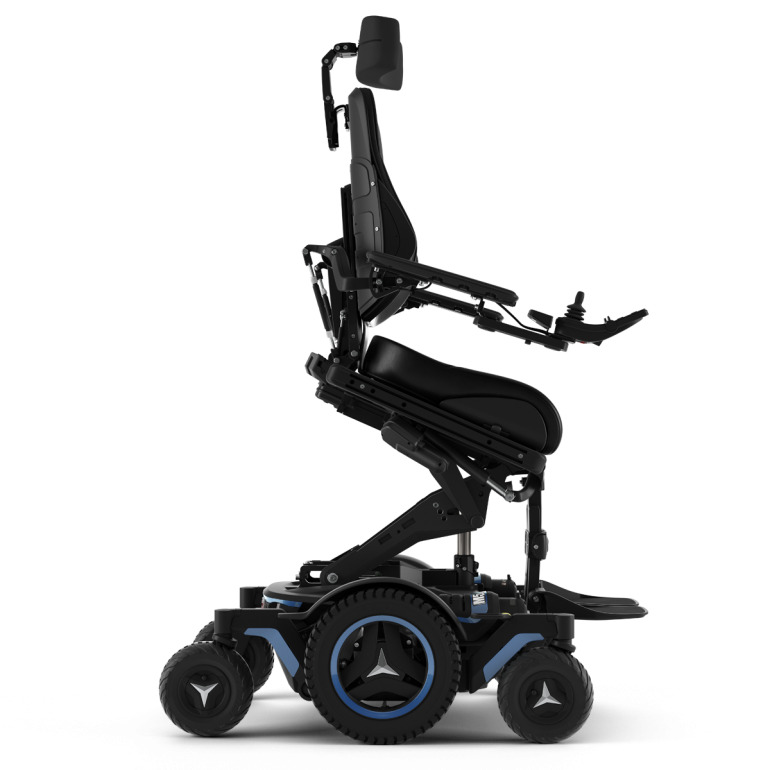

The Permobil M5 power chair with blue accents and rehab seating is shown in the ActiveReach position, using seat elevation and forward tilt to gain up to 4.5 inches of additional reach.
A Black woman in an M3 power wheelchair is elevated and tilted forward 20 degrees, using the ActiveReach feature to access the top shelf of her stainless steel fridge. thumbnail
A Caucasian woman smiles and faces the camera. She is using her F5 power chair with light blue accents in ActiveReach position to access her upper cabinets. thumbnail
The Permobil M5 power chair with blue accents and rehab seating is shown in the ActiveReach position, using seat elevation and forward tilt to gain up to 4.5 inches of additional reach. thumbnail
×
1 / 3
A Black woman in an M3 power wheelchair is elevated and tilted forward 20 degrees, using the ActiveReach feature to access the top shelf of her stainless steel fridge.
2 / 3
A Caucasian woman smiles and faces the camera. She is using her F5 power chair with light blue accents in ActiveReach position to access her upper cabinets.
3 / 3
The Permobil M5 power chair with blue accents and rehab seating is shown in the ActiveReach position, using seat elevation and forward tilt to gain up to 4.5 inches of additional reach.

❮

❯

A Black woman in an M3 power wheelchair is elevated and tilted forward 20 degrees, using the ActiveReach feature to access the top shelf of her stainless steel fridge.A Caucasian woman smiles and faces the camera. She is using her F5 power chair with light blue accents in ActiveReach position to access her upper cabinets.The Permobil M5 power chair with blue accents and rehab seating is shown in the ActiveReach position, using seat elevation and forward tilt to gain up to 4.5 inches of additional reach.

Reach for More  View more

Request Product Info

The world isn’t one dimensional. Your seat elevator shouldn’t be either. ActiveHeight™ elevation and ActiveReach™ forward tilt perform seamlessly to create a seating system like no other. With up to 14” of vertical seat adjustment and 45° of ActiveReach forward tilt capability, the F-Series empowers you to reach for more and go further faster with new elevated drive speeds of up to 3.2mph.

ActiveHeight™

Rise above the status quo with 12″ and 14″ seat elevator options that help you reach new heights. ActiveHeight™ is unique in that while elevating, the seating system repositions 3.5″ to maintain optimal forward stability and allows the user to get closer to objects. It is also the only seat elevator that does not lock out suspension at full elevation, so keep pace with a smooth ride at a top speed of 3.2 MPH.

ActiveReach™

ActiveReach™ technology enables you to reach for more by creating 4.5″ of additional reach. This can be used for reaching beyond obstructions, into high cabinets, or even assist in transfers. Truly putting your world into reach. While functional reach and transfers are improved using a seat elevator, many functional tasks are still limited as the chair is positioned sideways to the task at hand or your knees are unable to remain under tabletops. Permobil’s ActiveReach™ pairs 12″ and 14″ of seat elevation with functional reach packages so that your world is in reach while also allowing for a variety of possible transfer positions.

10º | Assists with stand pivot and lateral slide board transfers. Overcome fixed hip angles and maintain a functional line of sight.

20º – 45º | Programmable backrest and legrest angles ensure stability and function as you move into a fully tilted position. The removable knee block maintains positioning throughout.

30º – 45º | Position footplates to the ground negating the need to flip up footplates for safe transfers.

Available on: F3 Corpus, F5 Corpus, F5 Corpus VS, M3 Corpus, M5 Corpus.
